StormShield is a self-adhering ice and water protector that goes on the roof deck, under the shingles, in the places most likely to leak. It is a modified bitumen membrane on a non-woven glass fibre mat that acts as a second barrier against wind-driven rain and ice dams, and it can also serve as flashing around dormers, vent stacks, skylights, doors and windows.

It meets ASTM D1970. Each roll covers 18.1 square metres (195 sq. ft.).

GoldShield is IKO's premium ice and water protector and its highest level of protection against ice and water getting under the shingles. It goes where ice dams form and around vent stacks, dormers and other vulnerable spots. The flexible self-adhesive membrane seals tightly to the deck, and its silicone-treated release sheet allows a clean, accurate installation.

It is evaluated by the Canadian Construction Materials Centre (CCMC 12413-R) and meets CSA A123.22 and ASTM D1970. Each roll covers 18.6 square metres (200 sq. ft.).

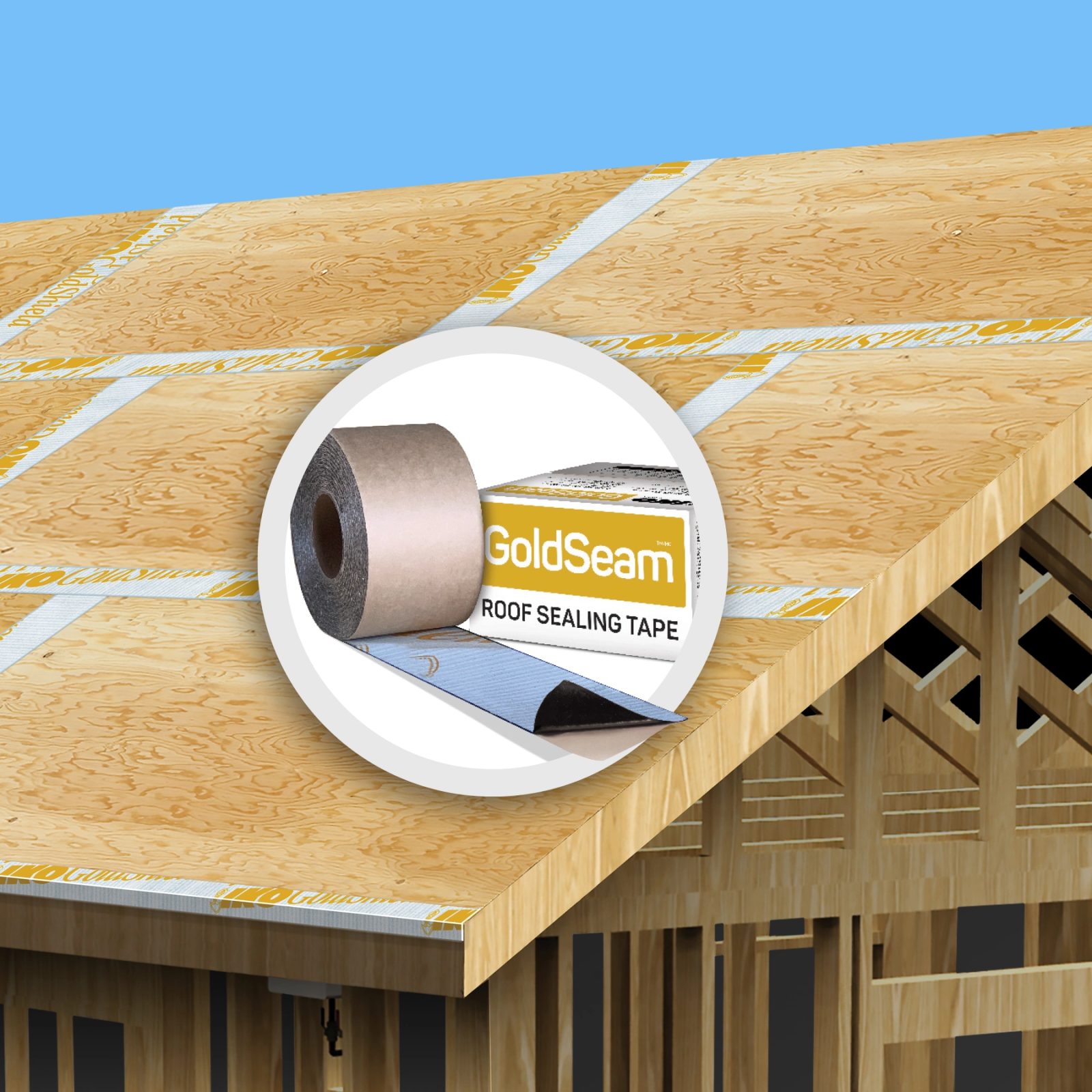

GoldSeam is a self-sealing tape for the joints and other vulnerable spots on the roof deck, helping prevent the leaks that lead to ice damming, water damage and rot. It is very flexible, so it goes on quickly, and its slip-resistant surface gives safer footing on steep roofs.

It meets CSA A123.22 and ASTM D1970. Each roll is 20.3 m long and 108 mm wide (66.7 ft by 4 1/4 in).

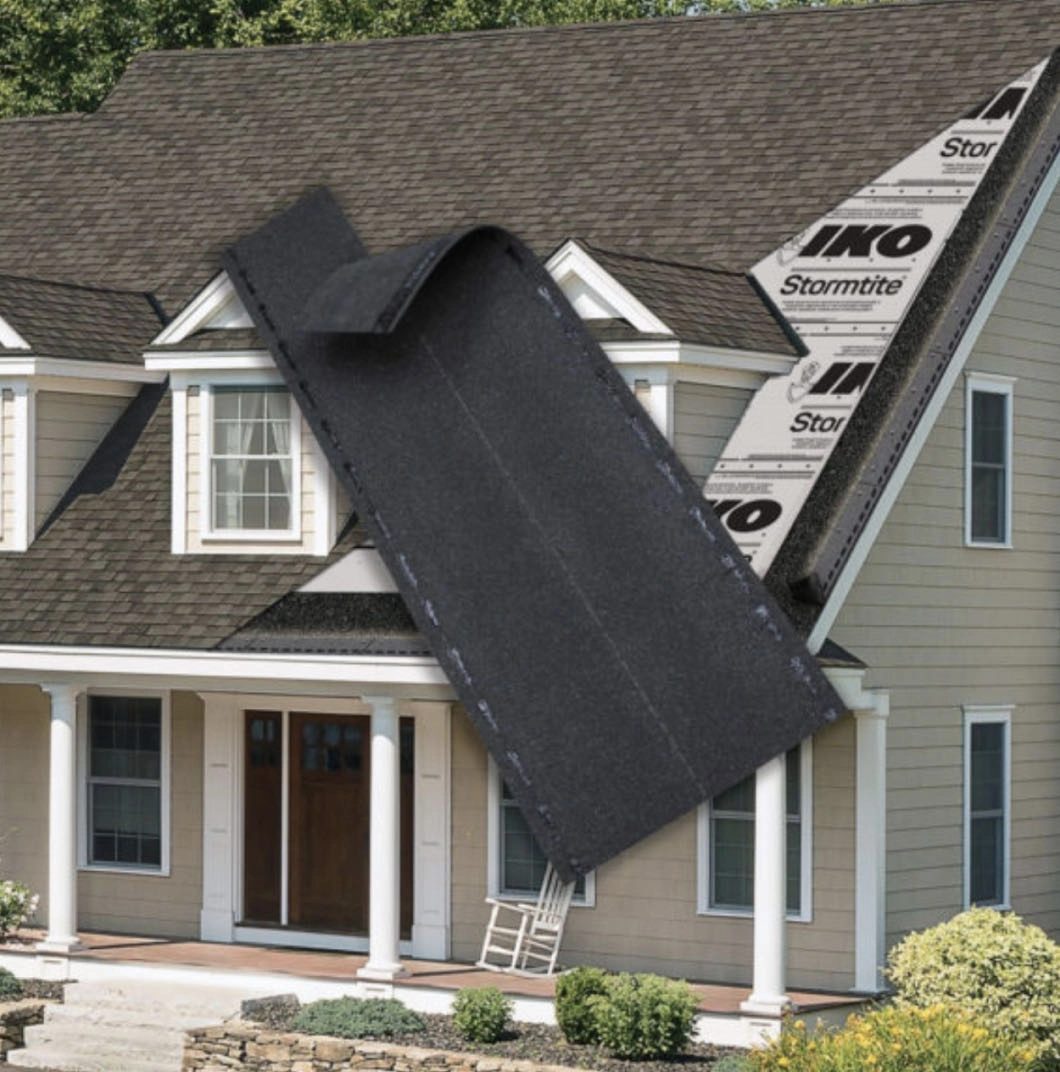

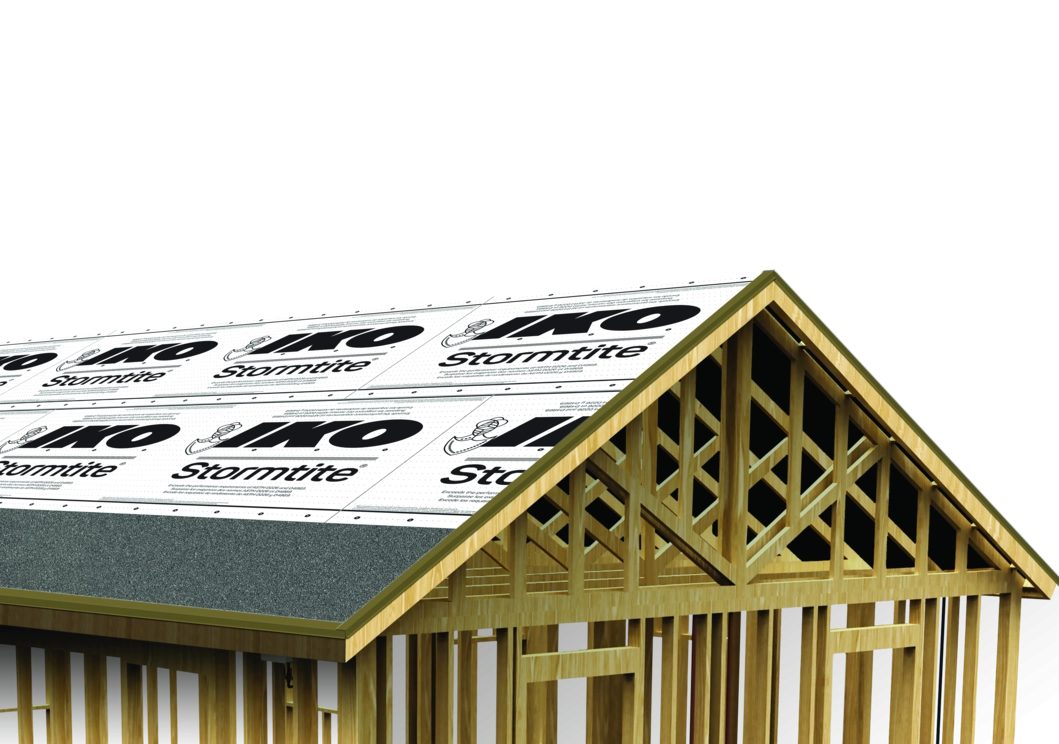

Stormtite is a synthetic underlayment that covers the roof deck beneath the shingles. It is stronger than traditional roofing felt, resists slipping, tearing and shredding under foot traffic, and is coated on both sides with polyolefin to shed water. It lies flat around vents, dormers and skylights without curling, and built-in UV stabilizers let it stay exposed for up to 30 days if weather delays the shingles.

It meets ASTM D8257. Each roll covers 92.9 square metres (1,000 sq. ft.).

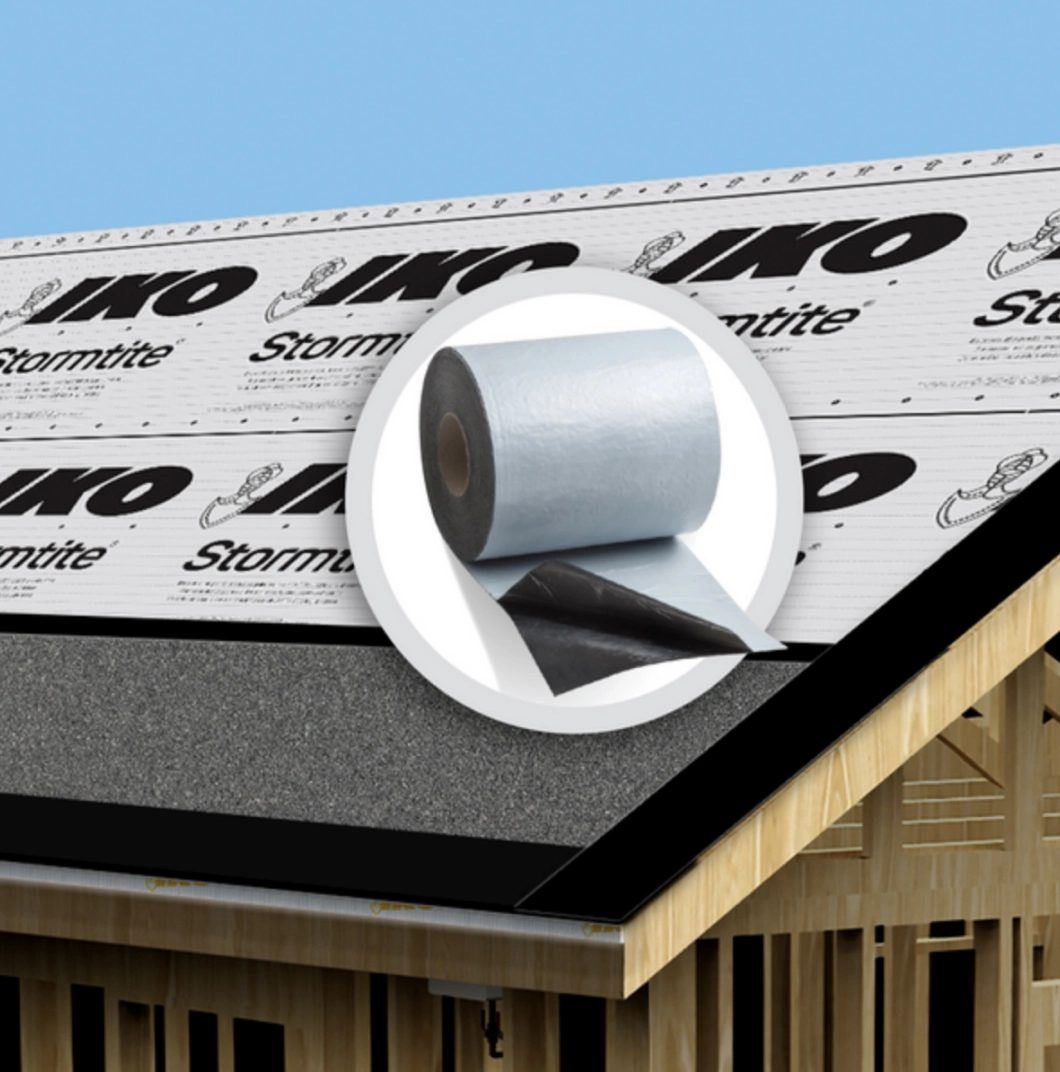

EdgeSeal is a self-adhering roll starter that bonds the drip edge, the ice and water protector and the first course of shingles into one continuous barrier along the eaves and rakes, where wind uplift and blow-offs usually begin. It needs no special tools or nail gun: it is cut to length, the release film is peeled away, and it is pressed into place.

It meets ASTM D1970. Each roll is 20.5 m long and 200 mm wide (67.3 ft by 7 7/8 in).

Leading Edge Plus is a starter shingle for the eaves and rakes that creates a tight seal around the roof's perimeter, where wind does the most damage. Each shingle splits into two starter strips, so regular shingles do not have to be cut down to make starters.

It is rated ASTM D3161 Class F and ASTM D7158 Class H for wind when installed over an approved underlayment, and it holds a CAN/ULC S107 Class A fire rating. Each bundle covers 33 linear metres (109 linear ft).

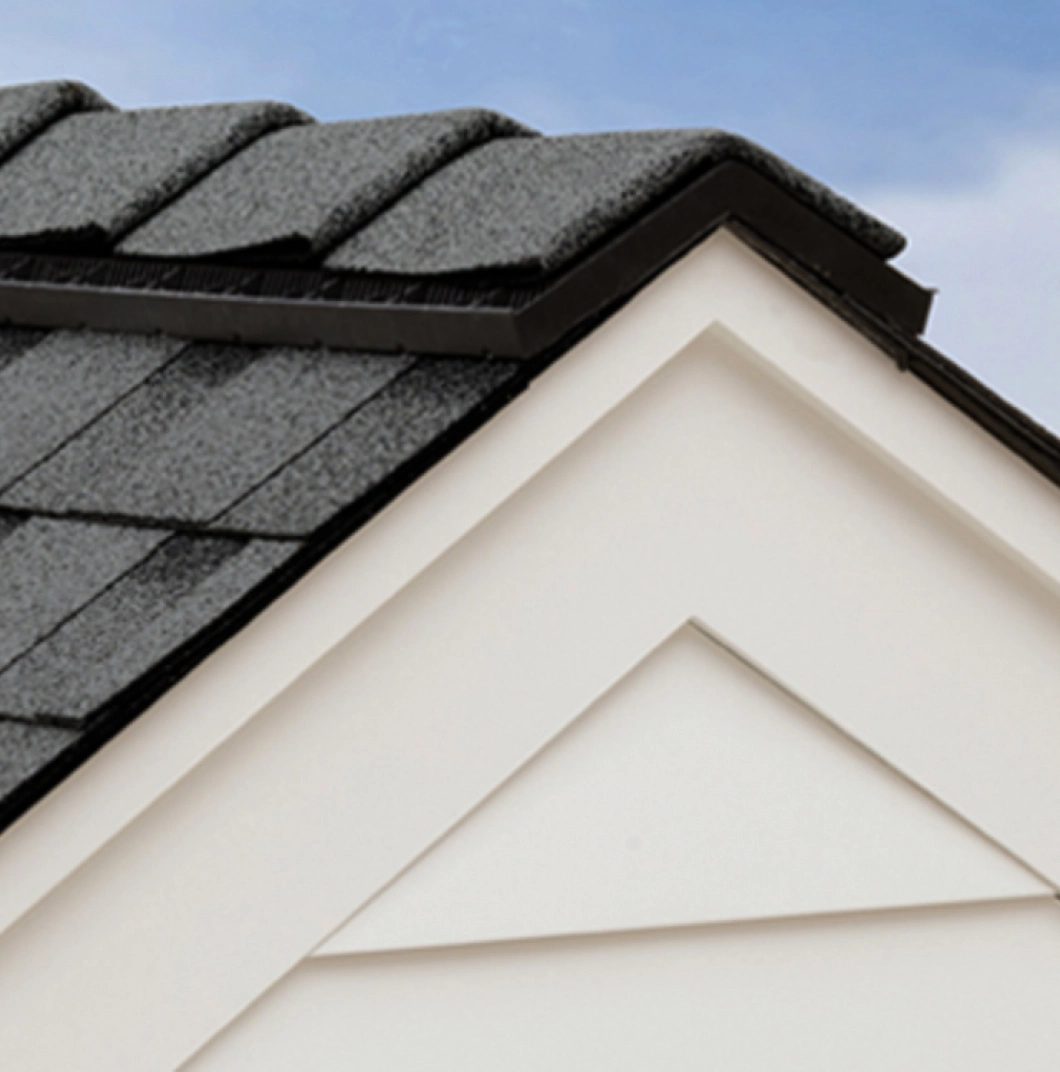

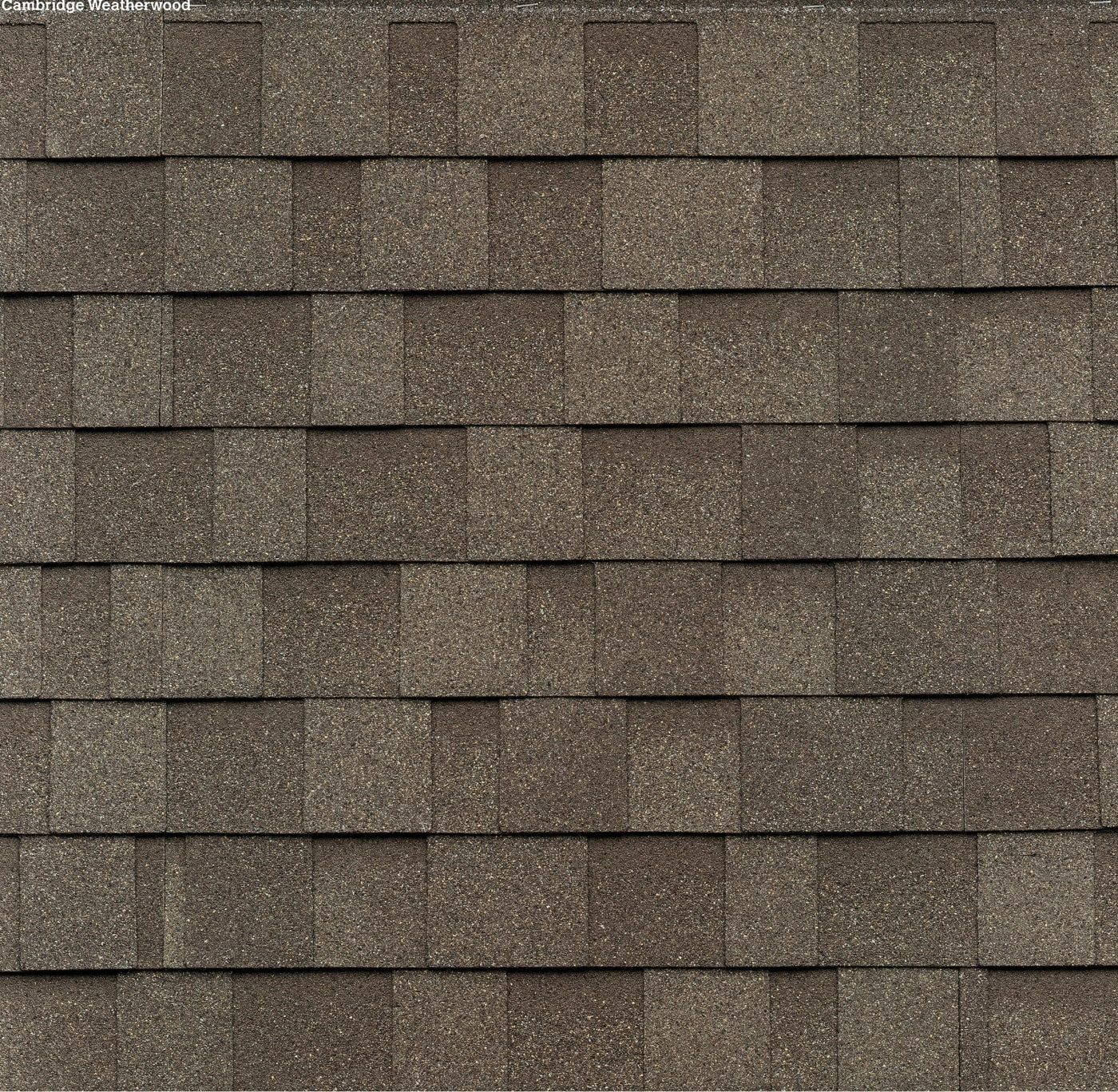

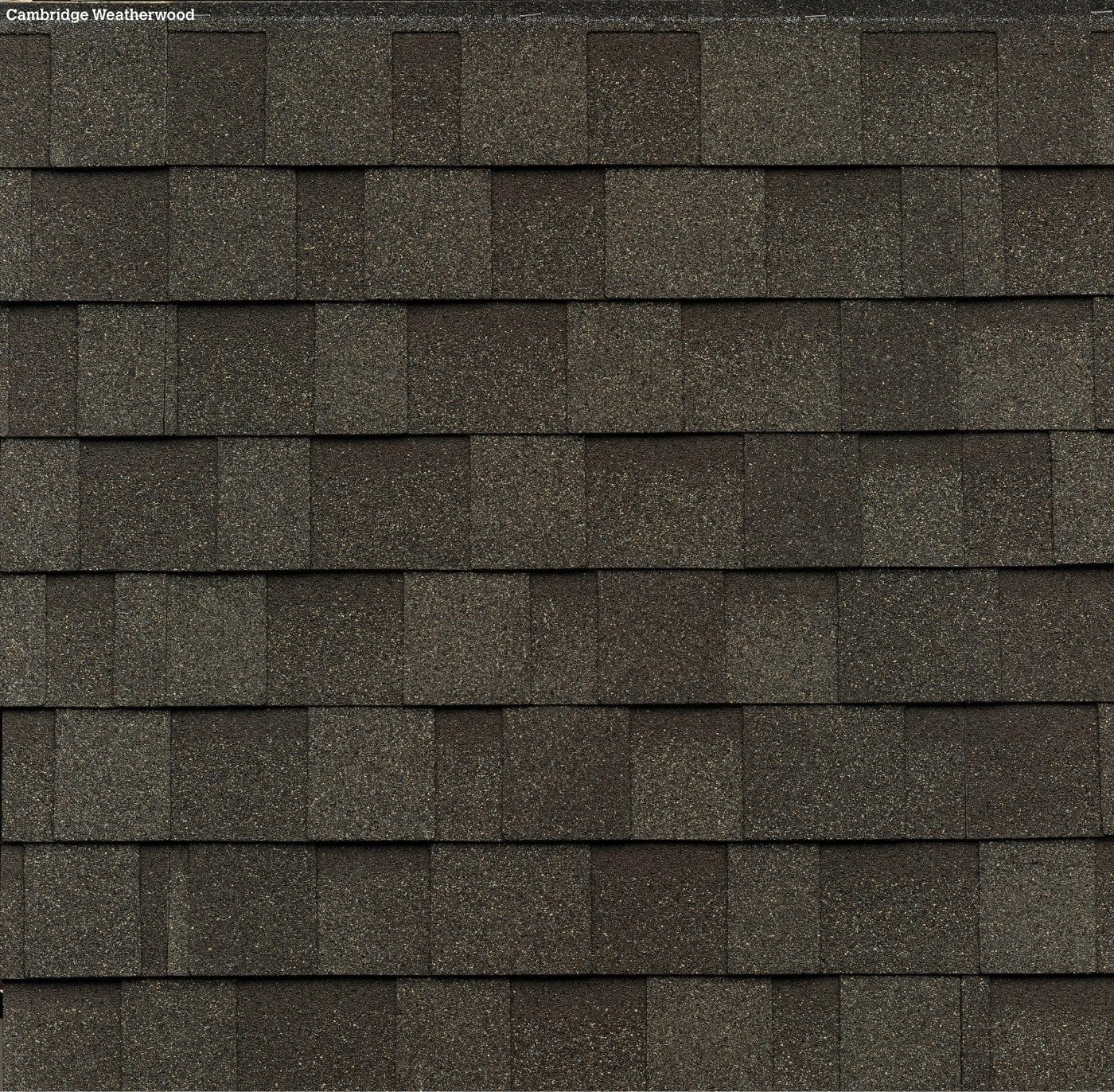

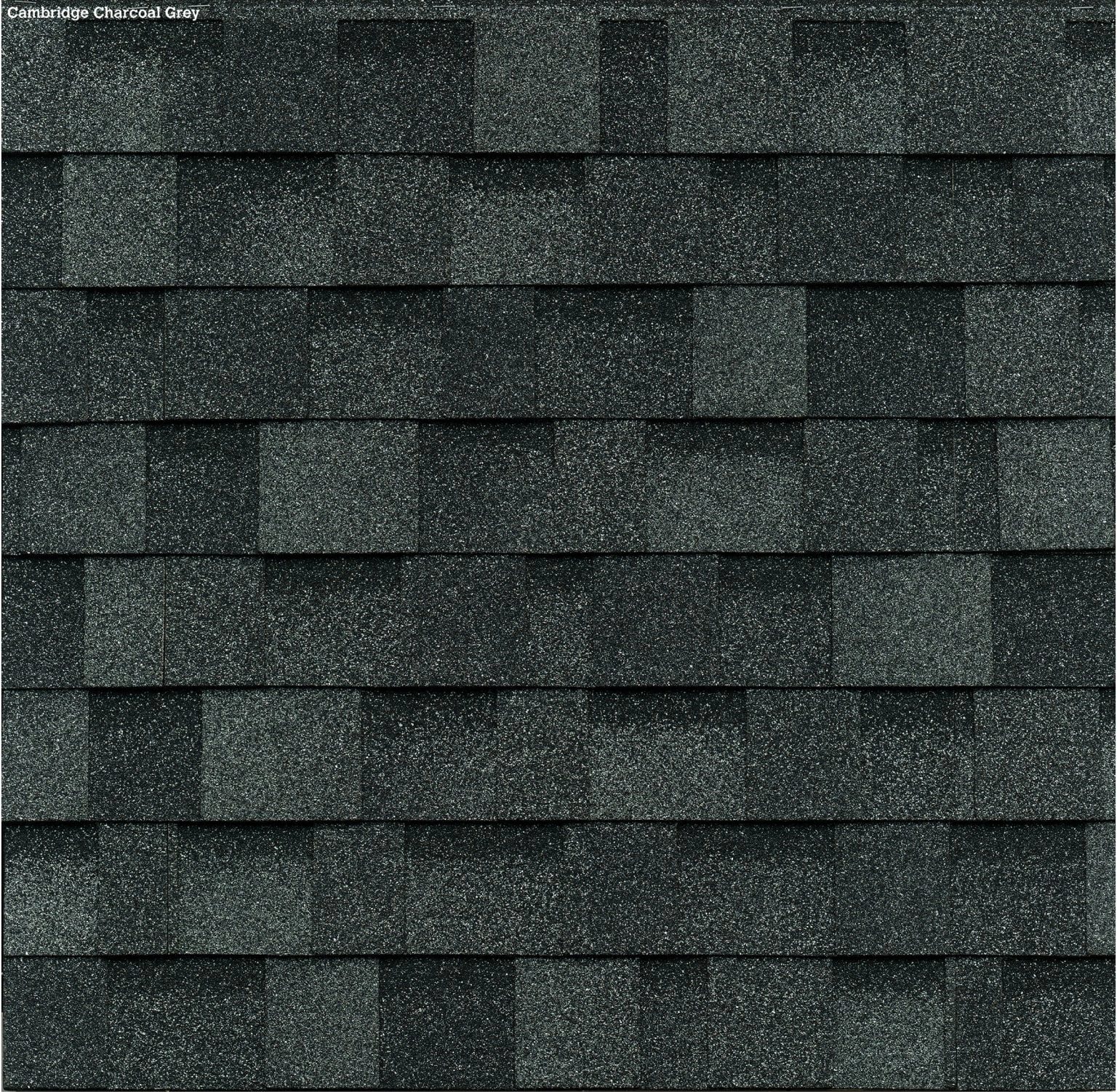

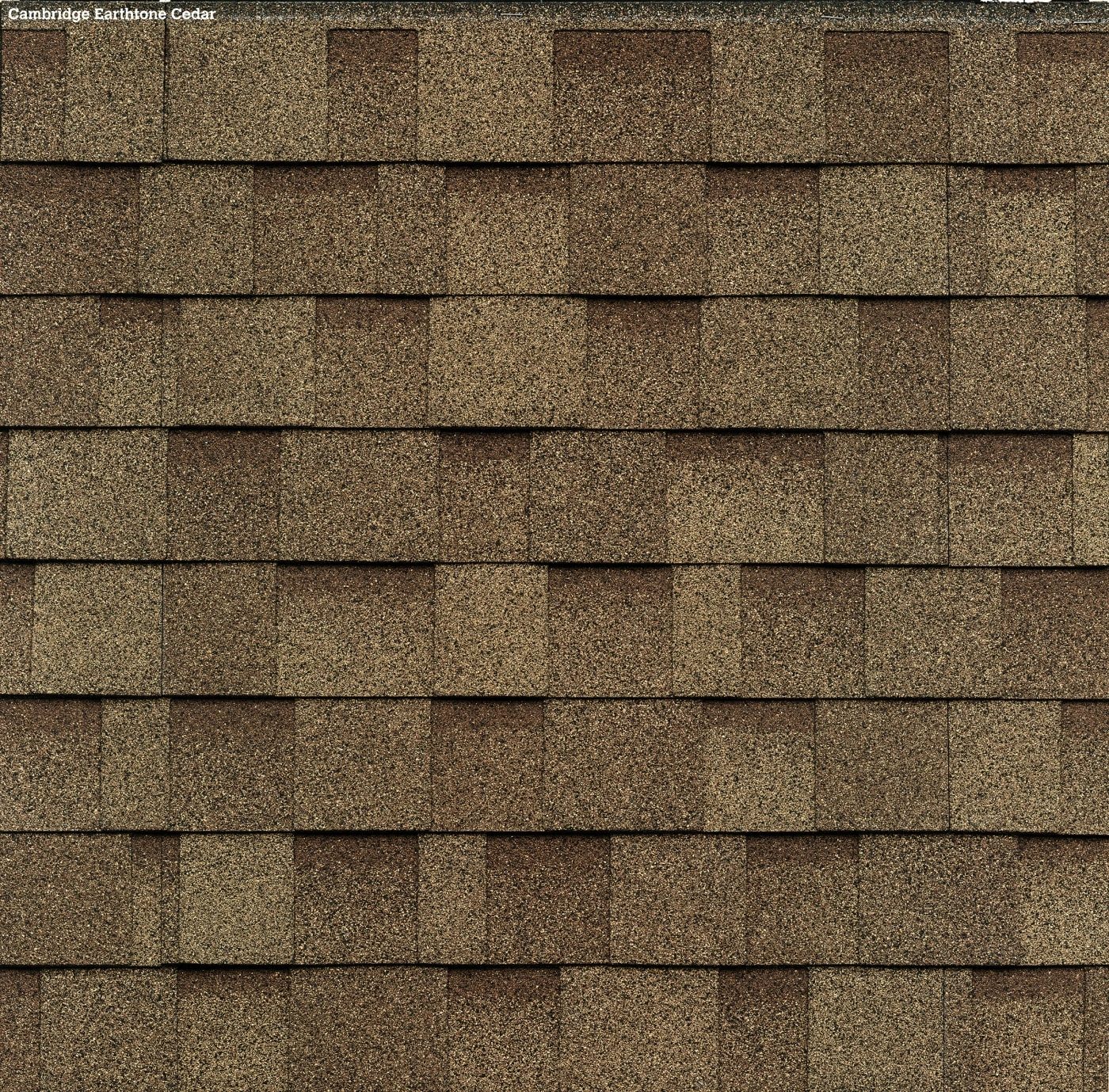

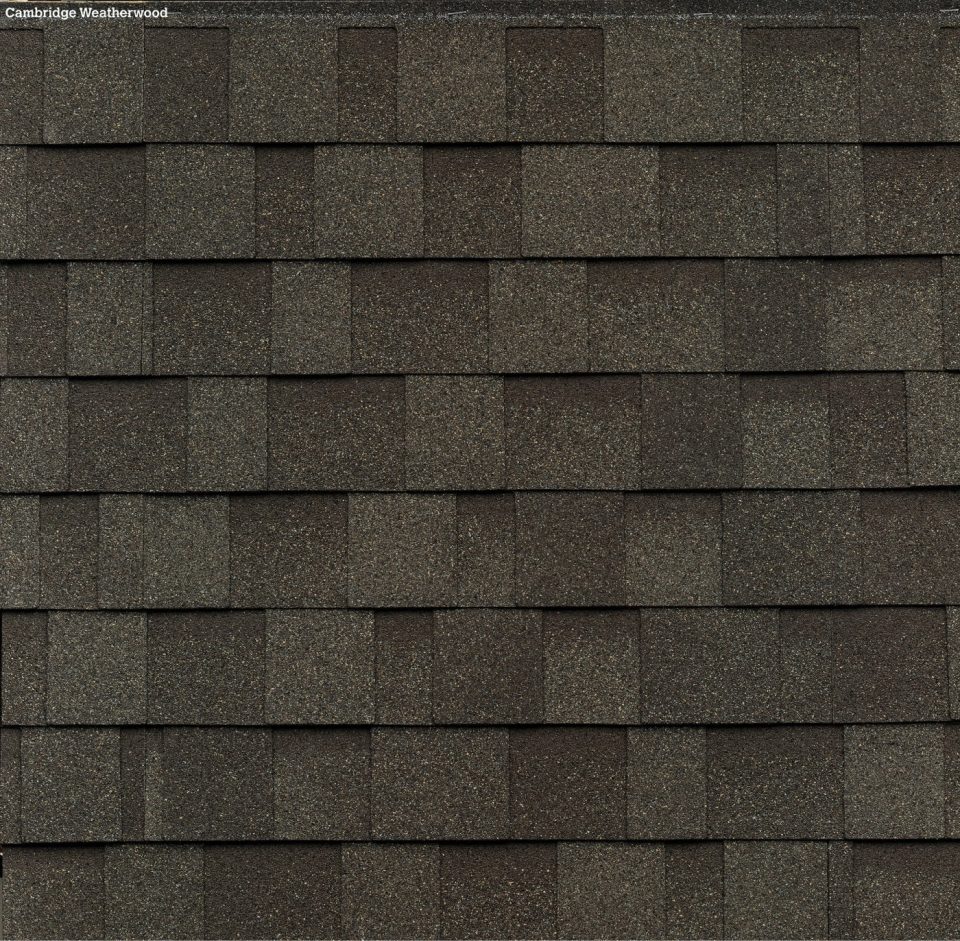

Hip & Ridge cap shingles finish the hips and ridges, the peaks where a roof is most exposed. Each piece separates into three caps, giving a neater, more uniform look than caps cut from regular shingles. Hip & Ridge 12 carries a Class 3 impact rating to pair with Class 3 shingles such as Dynasty and Cambridge, and Hip & Ridge Class 4 pairs with Class 4 shingles such as Nordic.

IKO cap shingles, or an equivalent IKO-approved product, are required for IKO's shingle warranty coverage. They are rated ASTM D3161 Class F for wind and meet CSA A123.5. Each package covers 9 linear metres (29.5 linear ft).

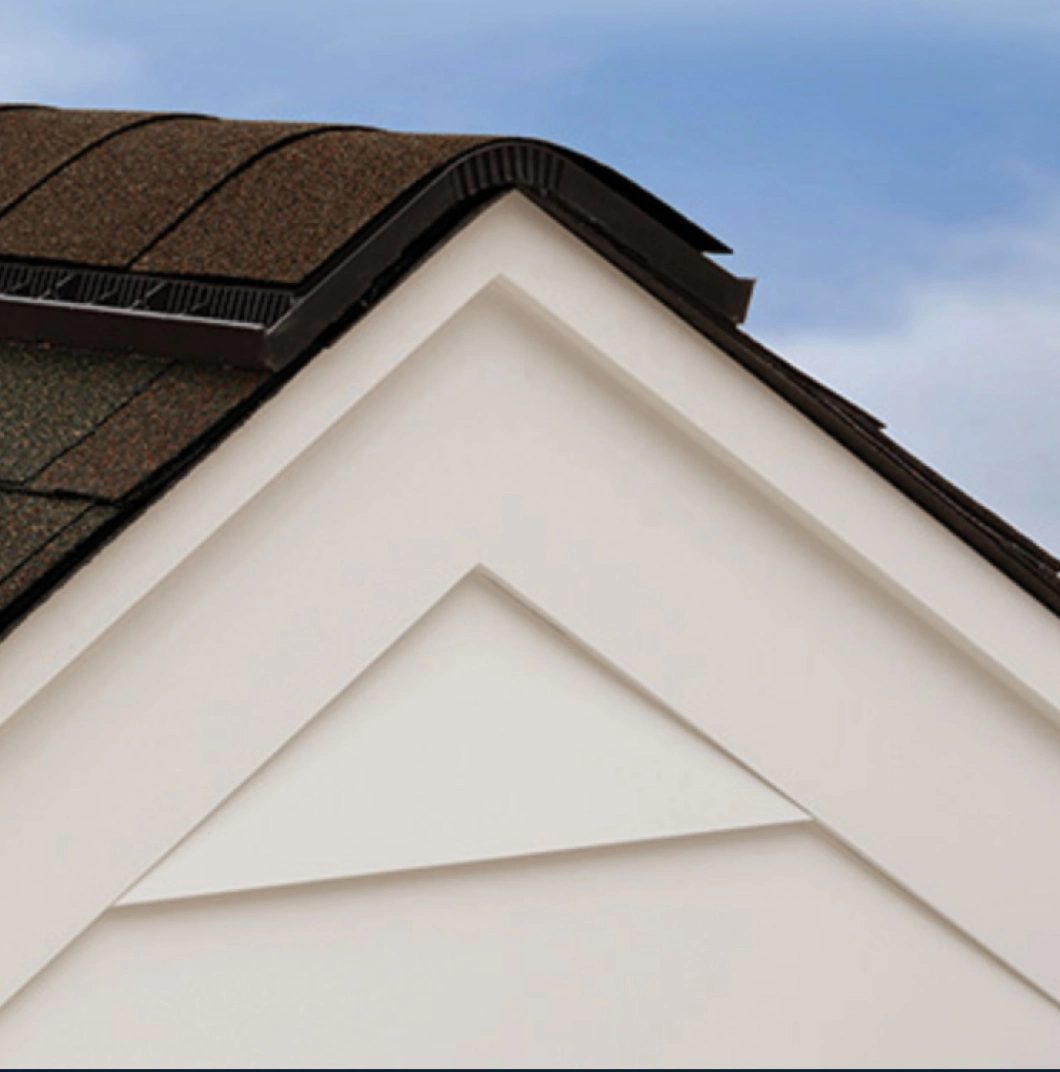

UltraHP and UltraHP IR are high-profile ridge cap shingles that give the roof line a thicker, more dimensional finish than standard caps, in colours that coordinate with IKO's most popular laminated shingles. UltraHP suits IKO laminated shingles, and UltraHP IR is the version used with impact-resistant shingles.

IKO cap shingles, or an equivalent IKO-approved product, are required for IKO's shingle warranty coverage. Each piece measures 292 by 254 mm (11 1/2 by 10 in).
